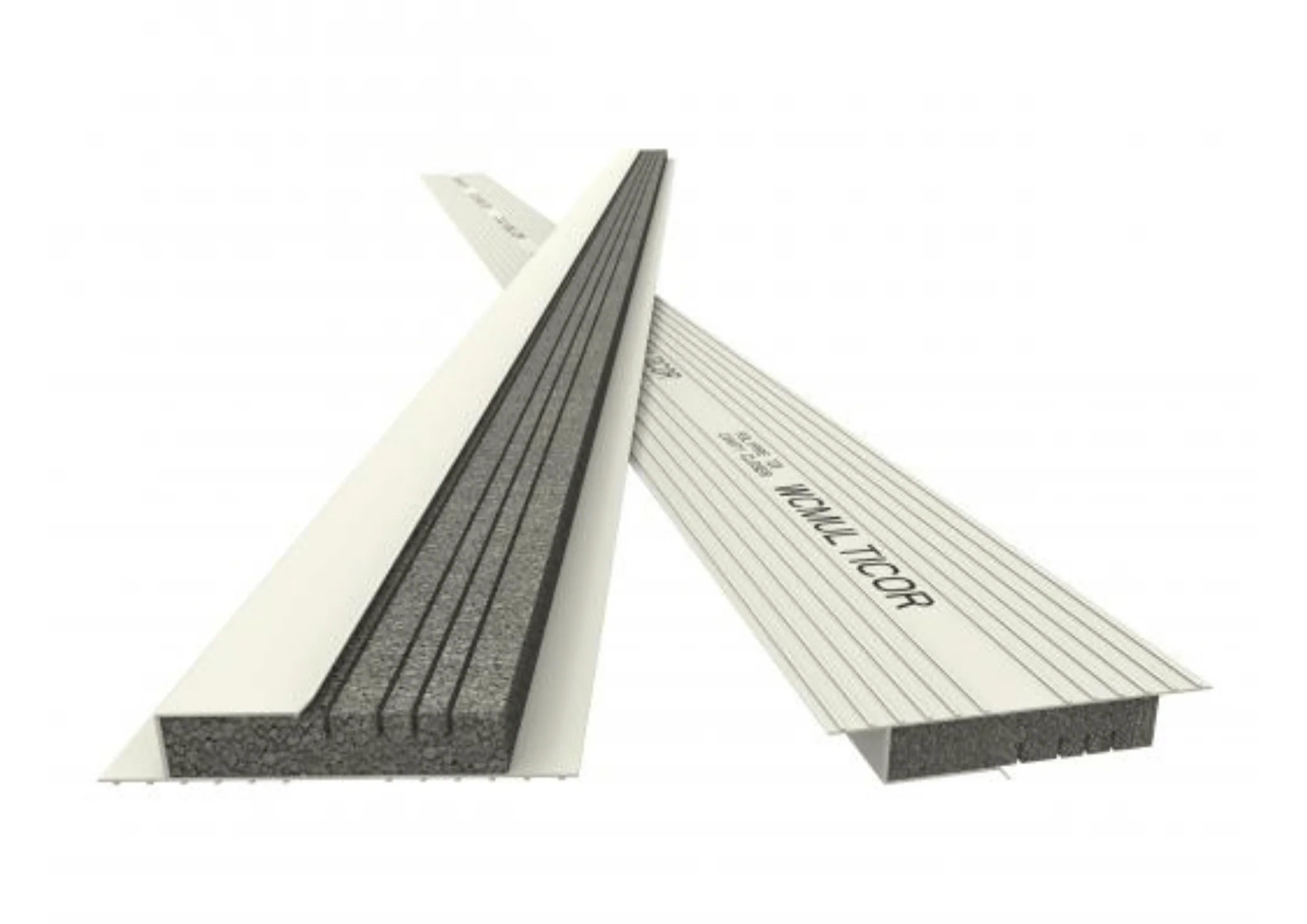

Manthorpe 50mm -100mm Multi-Width Cavity Closer 2.44m Length - Pack of 6
The Manthorpe WCMulticor is a multi-width TDI cavity closer designed to suit standard cavity widths between 50mm and 100mm in a single product, providing both a thermal break at window and door reveals and an effective vertical DPC barrier at the jambs. Its double flanged profile is produced from a single PVCu extrusion with a 20mm EPS insulation insert (K-value 0.030 W/mK), achieving the required thermal resistance at the reveal when frames are fixed with a minimum 30mm overlap into the cavity. Groove guides allow quick and accurate on-site cutting to suit various cavity widths without specialist tools. BBA certified (Certificate No. 96/3226) and suitable for single person installation. Supplied in 2.44m lengths, sold in packs of 6.
Benefits
- Suits cavity widths from 50mm to 100mm — one product covers a wide range of standard cavities
- Provides a thermal break at window and door reveals, supporting Part L compliance
- Acts as an effective vertical DPC barrier at the jambs
- Double flanged profile from a single PVCu extrusion for a robust, consistent fit
- Groove guides allow quick, accurate on-site cutting to width
- EPS insulation GWP rating less than 5 — low environmental impact
- BBA certified — Certificate No. 96/3226
- Suitable for single person installation
Good to know
- K-value: 0.030 W/mK; insulation depth: 20mm
- Frames must be fixed to allow a minimum 30mm overlap into the cavity to achieve the required R value
- Supplied in 2.44m lengths, sold in packs of 6 (box weight 5.42kg)
- Material: PVCu extrusion with EPS insulation
- Always refer to the Manthorpe WCMulticor Product Information Sheet before installation
